Flexible Cables

Flexible Cables
Flexible Cables
Product Code : MCPL 01
Brand Name : MANIDHARI CABLES
Price And Quantity
  • Minimum Order Quantity
  • 100
  • Unit of Measure
  • Roll/Rolls
Product Description

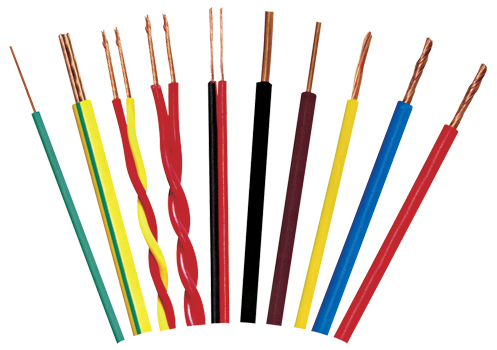

The Flexible Cable wires are basically used in the wiring system of the various control panels, machines. They are made up of high grade material that is procured from trusted suppliers. Apart from this they also find their usages in different electrical installations in dry & damp interiors. These wires can be easily used under typical industrial environmental conditions. We Manidhari cables are leading manufacturers of pure electrolytic annealed tinned copper wires. They deliver higher performance and better conductivity and are insulated with in house PVC compound that is specially formulated for high insulation resistance for these wires. It also provides dielectric strength. The Multicore cables are combinations of different insulated cores that are laid together to form a core assembly. In these wires the shielding is again provided with specially formulated PVC compound. It allows easy stripping & can also withstand mechanical abrasion. Further it provides protection and are available in different specification.

Colors:
  • The wires are available in solid colors & natural opaque. We also provide Bicolour.
Key Aspects:
  • Corrosion Resistance
  • Highly durable
  • Safe to use
  • Shock Proof

 S.No  Number of Strands SWG.
 Conductor Size in (mm)
 Insulation Thickness in (mm)
 Overall Dia in (mm±2%)
 Current in (Amp)
 01  7/42  0.102  0.40  0.70  0.25A
 02  7/40  0.122  0.50  1.20  0.40A
 03  7/39  0.132  0.45  1.35  0.5A
 04  7/39  0.132  0.15  1.00  0. 5A
 05  7/38  0.152  0.40  1.35  0.75A
 06  7/37  0.173  0.40  1.35  1.0A
 07  7/36  0.193  0.30  1.35  1.5A
 08  7/.2  0.203  0.35  1.35  1.6A
 09 14/42  0.102  0.60  1.75  0.6A
 10  14/40  0.122  0.60  1.75  1.0A
 11  14/39  0.132  0.55  1.65  1.5A
 12  14/38  0.152  0.35  1.65  2.0A
 13  14/38  0.152  0.45  1.75  2.0A
 14  14/37  0.173  0.45  1.65  2.5A
 15  14/36  0.193  0.35  1.80  3.0A
 16
 16/36  0.193  0.55  2.20  3.5A
 17  16/.2  0.203  0.55  2.20  4.0A
 18  23/42  0.102  0.90  2.20  1.0A
 19  23/40  0.122  0.80  2.20  2.0A
 20  23/39  0.132  0.70  2.20  2.5A
 21  23/38  0.152  0.65  2.20  4.0A
 22  23/36  0.193  0.55  2.20  6.0A
 23  23/36  0.193  0.65  2.40  6.0A
 24  40/38  0.152  0.70  2.60  11.0A
 25  40/36  0.193  0.65  2.65  12.0A
 26  70/36  0.193  0.60  3.40  17.0A

Trade Information
  • Payment Terms
  • Cash Advance (CA), Cheque, Telegraphic Transfer (T/T)
  • Supply Ability
  • Depends on Order Per Month
  • Delivery Time
  • As per Requirement Week
  • Sample Available
  • Yes
  • Sample Policy
  • Free samples are available
  • Main Domestic Market
  • All India
